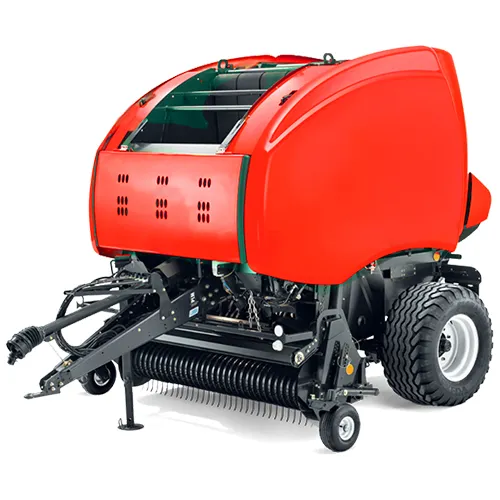

Hay Baler (Model-AG-HB-Tai4000-100R)
|
|
|
|
Features
|
|
Round Baler
|
|
- heavy-duty variable chamber round baler designed for producing large, high-density cylindrical bales of hay, straw, and silage. It is PTO-driven and engineered for professional farming operations that require flexibility in bale size and consistent bale quality.
|
|
- This model features a belt-type variable chamber system, allowing the operator to adjust bale diameter from 0.90 m up to 1.80 m. The hydraulic density control system ensures uniform bale formation with consistent core structure and tight outer layers, improving storage efficiency and transport stability.
|
|
- The baler is equipped with a high-capacity cam-track pickup that efficiently lifts crop material from the windrow and feeds it into a heavy-duty rotor intake system. An optional cutter unit with multiple knives can be fitted to improve chop quality for silage or easier feed handling.
|
|
Key Features:
|
|
-
|
Variable bale diameter up to 1.80 m.
|
|
-
|
Belt-type bale chamber for uniform density.
|
|
-
|
Heavy-duty rotor intake system.
|
|
-
|
Optional chopping system (multi-knife).
|
|
-
|
Automatic net wrapping.
|
|
-
|
Hydraulic rear tailgate discharge.
|
|
-
|
Electronic in-cab control and monitoring.
|
|
Specification
|
|
Bale Type:
|
Round (cylindrical)
|
|
Chamber Type:
|
Variable (belt system)
|
|
Bale Diameter Range:
|
0.90 – 1.80 m
|
|
Bale Width:
|
1.20 m
|
|
Density Control:
|
Hydraulic, adjustable from cab
|
|
Pickup Width
|
approx. 2.40 m
|
|
Feeding System:
|
Heavy-duty rotor intake
|
|
Optional Cutter Unit:
|
Up to 17 or 25 knives (depending on configuration)
|
|
Minimum Tractor Power:
|
approx. 100 HP
|
|
Recommended Power:
|
110–130 HP for silage
|
|
PTO Speed:
|
540 rpm
|
|
Hydraulic Requirement:
|
2 double-acting spool valves
|
|
Binding System
|
Net wrap system (standard)
|
|
Twine option available
|
|
Automatic binding cycle
|
|
Length:
|
~4.1 m
|
|
Width:
|
~2.5 m
|
|
Height:
|
~2.8 m
|
| |
|
|
