Product Details

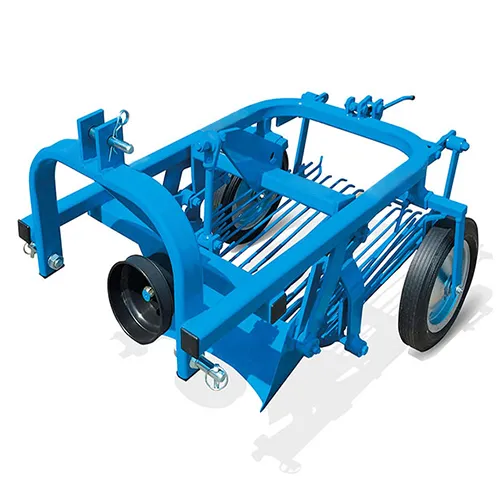

Potato Digger (Model-AG-PD-TUQ1200C)

Features

Description

-        Vibrating digger (aside discharge) is designed to harvest of potatoes, sugar beets, carrot and other root crops. Machine is recommended on small plantations on light soils, medium compactness soils without stony, and plant residuals. Simple construction, easy maintenance and service are the important advantages of this machine. Two-disc coulters cut off the plants, dual share cut the ridge in the bottom part carrying it horizontally to the vibratory sifter. Two sisters, moving in opposite directions, removes the soil, puts the vegetables in the narrow rows along the machines. This arrangement ensures smooth working of the machine and makes crop of vegetables easier. It should be noted, that construction of the digger characterized by very low potatoes damage index

Key features and specifications:

-

Type: Vibrating potato digging machine with oscillating sieve.

-

Working Mechanism: The adjustable vibrating drill transfers the potatoes and soil to a vibrating screening mesh to separate the potatoes from the soil.

-

Tractor compatibility: Two Designed to work with small tractors equipped with a Class I (Cat I) three-point suspension system.

-

Required Tractor Power: Minimum 10 HP tractor power required.

-

Machine weight: It weighs about 135 kg.

Working width: The actual working width is 45cm.

-

Depth adjustment: The digging depth is adjusted by the rear support wheels.

-

Drainage: This model is available with a rear discharge system, and there is another model available with a side discharge.

-

Usage: Suitable for use in small lands, whether flat or mountainous.

Specification

Type

potato, carrot, sugar beet

Mobility

tractor-mounted

Number of rows

1-row

Engine power

10 ch (10 hp)

Empty weight

245 kg (540.1 lb)
